Golf Studio

Socket Cutter

安全確実にソケットをカットします

○Fix by vise
○Turn acrylic cover 180 degree

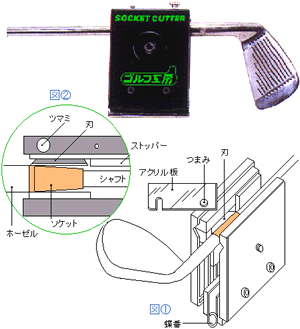

○Set a club as shown in previous page. Blade should be positioned not to touch on HOSEL (Refer to Fig 1)
○Return the acrylic cover. Turn bolt by wrench step by step. In case of turning bolt quickly, shaft may be damaged. Turning speed of the bolt should be once per 20 sec..
○After one or two turns, blade bites socket. With sound, socket is cut. (Some sockets do not sound) Do not try to cut by one turn. Try two or three turns. However, too many turns may damage the socket. (Make sure that the blade touches center of socket properly as shown above left fig. In above right fig., cutter may be damaged.)

※ During cutting sockets, set acrylic cover all times and do not take a look inside.

○Socket does not drop even bit once by cutter. After one bit, remove cutter from the shaft and shift the socket to grip direction. In order to drop the socket, two cuts are necessary.
